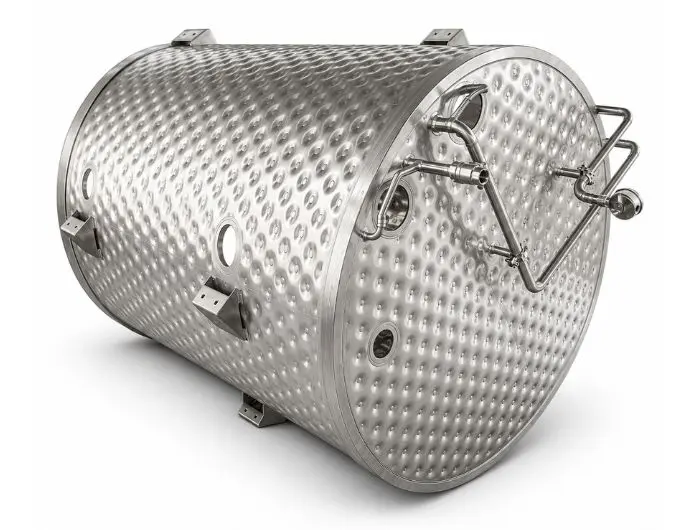

Tank & Vessel Jacket Panels
Laser-welded jacket panels for heating and cooling tanks, reactors, process vessels, cones, dish ends, and storage equipment.
Tank and vessel jacket panels are pillow plate heat transfer surfaces welded or fitted to the outside of process vessels to provide controlled heating or cooling through the vessel wall.
Compared with conventional dimple jackets or half-pipe coils, pillow plate jackets provide large contact area, low media volume, and strong thermal response in a compact surface.
Calvion designs jackets around vessel diameter, wall thickness, operating pressure, process media, required temperature profile, nozzle placement, and cleaning or insulation requirements.
Sectors Served
Specify a Tank Jacket Panel
Share vessel dimensions, process media, utility media, operating pressure, and temperature duty. Calvion will size the jacket area and circuit layout.
